Every widget, once placed on a form, has a control menu that provides an easy and consistent location to configure the widget. In this article we will describe the menu items
The Widget Controls

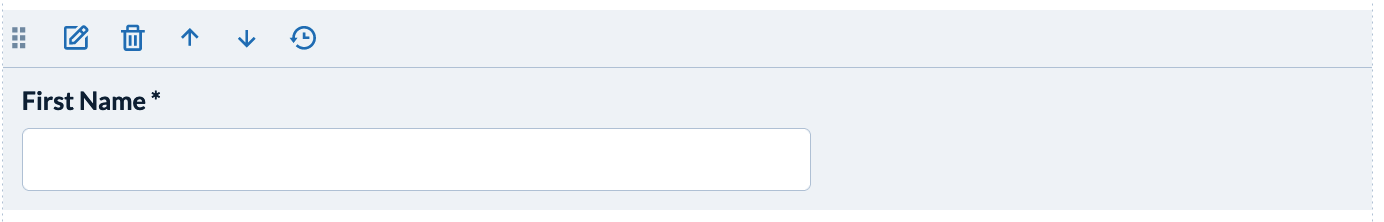

The input widget below illustrates the widget control menu:

| Icon | Action | Description |
| Move (Drag and Drop) | Click and hold and drag the widget to a different location using this control. This control must be used to move a widget into or out of a group. | |
![]() |
Edit | Possibly the most important widget control, it opens the left configuration panel to make changes to the content, settings and rules for the widget. |
| Delete | Deletes the widget from the palette. If there are existing responses - i.e. the form has already been completed and responses gathered for this widget - you will be prompted to clarify if you wish to permanently delete the widget or 'hide' in future but maintain the existing responses. | |
| Move Up | Move the widget once in a upward direction each time it is clicked | |
| Move Down | Move the widget once in a downward direction each time it is clicked | |
![]() |
Change History | Displays the history of changes made to the widget configuration |
